Fire Valves
1.Product introduction
Fire valves are widely used for fire hydrant in firefighting industry, mainly introduce 3 types brass fire hydrant valves here.

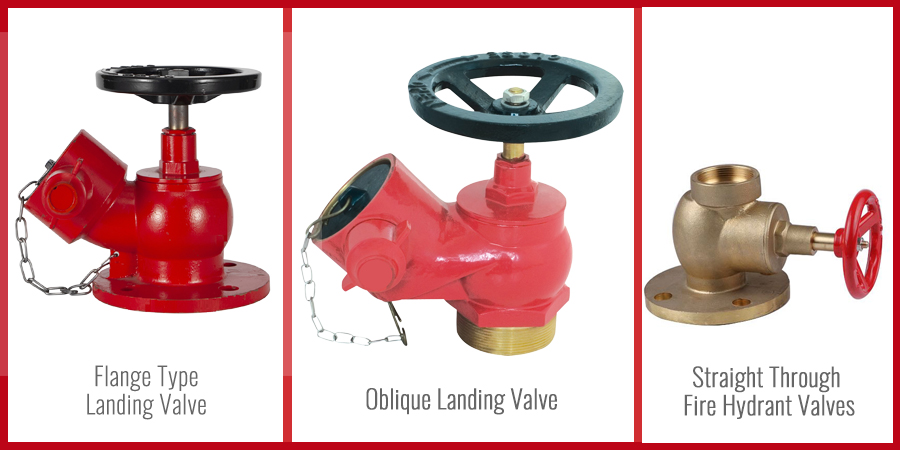

Flange type landing valves, oblique landing valves, straight through angle fire hydrant valves.
2.Product Parameter
|
Code No. |
Inlet |
Outlet |
|
XF001-002-00 |
2'' BS4504 |
2.5'' BS336 |
|
XF001-002C1-00 |
2.5'' JIS10K |
2.5'' BS336 |
|
XF001-002D-00 |
2.5'' BS4504 |
2.5'' BS336 |
|
XF001-002A-00 |
2.5'' BS4504 |
2.5'' BS336 |
|
XF001-006B-00 |
2.5'' BSP |
2.5'' BS336 |
|
XF001-006C-00 |
2.5'' BSP |
2.5'' BS336 |
|
XF001-009B4-00 |
2'' ANSI |
F2'' BSP |
|
XF001-009B7-00 |
2'' BS4504 |
2''BSP |
|
XF001-009B9-00 |
2'' BS4504 |
2''BSP |
| XF001-049-00 | 1.5'' BS4504 | F1.5'' BSP |
- Body material made of brass alloy to EN 1982.
- Hand wheel material made of grey cast iron to BS EN 1561.
- Blank cap material made of copper alloy to EN 1982.
- Gland seal relaceable when under pressure with the valve fully closed.
- Disc facing rubber is replaceable.
- Valves are provided with a strap and pad lock, then hand wheel can be secured to counter unauthorized use
- The hand wheel is black and the body is red painted.
